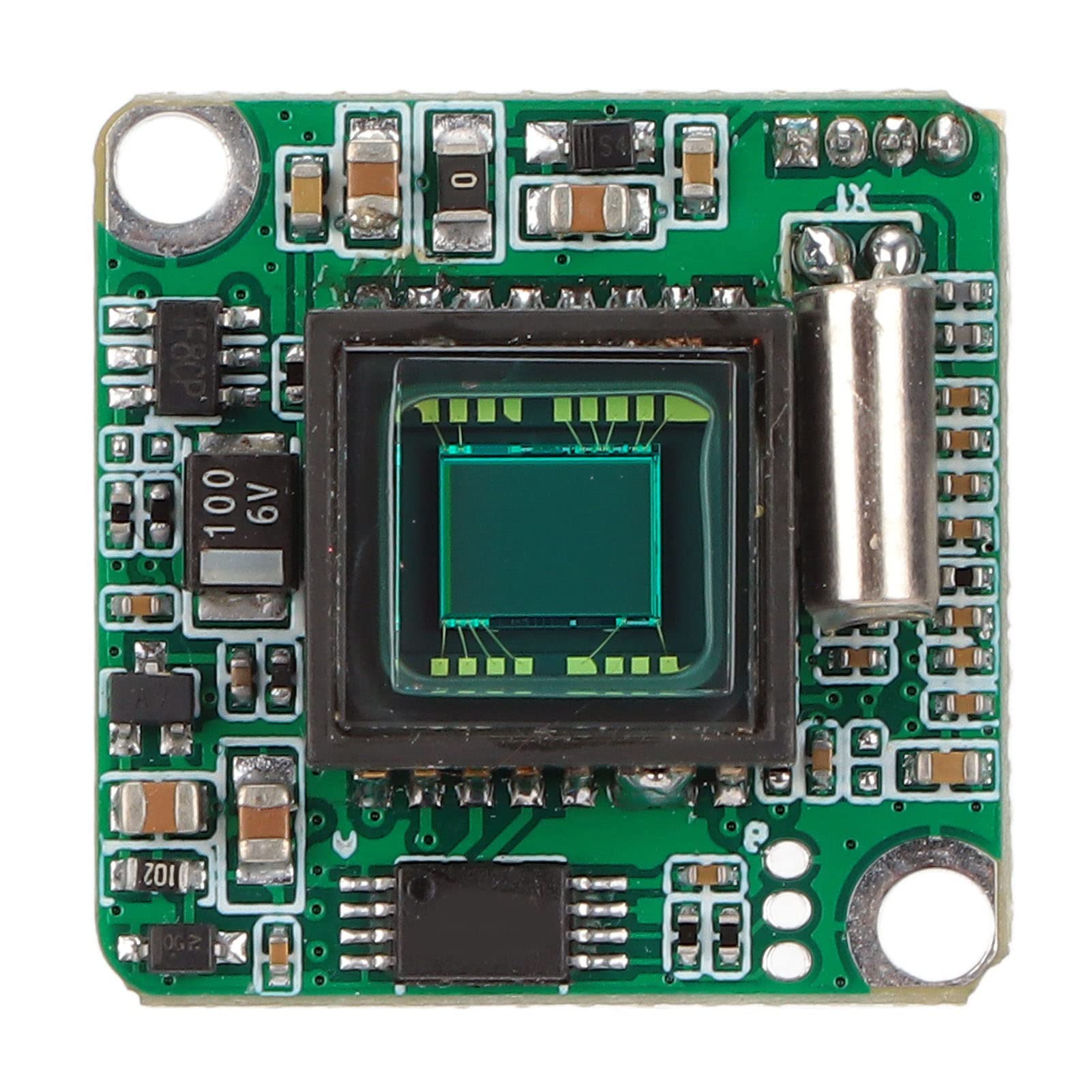

High Resolution 23x23mm CCD Camera Module - 1Vp-p Video Output for Surveillance & DIY Projects

Specification: Item Type: Camera Module Material: PCB Size: Approx. 23x23mm / 0.9x0.9in Horizontal Resolution: 700TVL Chip Model: 2090+811 Signal Type: Analog Signal Auto Gain: OSD Video Output: 1Vp-p Audio Output: None System Synchronization: Internal Synchronization Operating Temperature: -20 ℃ to 60 ℃ Backlight Compensation: OSD Minimum Illumination: 0.1lx SNR > 52dB Package List: 1 x Camera Module Note: Manual measurement, please allow some error.

AUTO GAIN: OSD, it is displayed on the screen through the function menu to achieve the purpose of adjusting various parameters.

EXCELLENT PERFORMANCE: High temperature resistance 20 ℃ to 60 ℃. Chip model 2090+811, high sensitivity perfectly adapted to the camera.

SIMPLE INSTALLATION AND PARAMETERS: Easy to install, easy to use. Horizontal resolution: 700TVL, chip model: 2090+811.

HIGH GRADE PCB MATERIAL: Made of high grade PCB material, sturdy and durable, long service life.

WIDELY USED: This tiny camera board can be installed in the most narrow position for security camera system, dashcam, etc.
