7" IPS HD Backup Camera for Trucks & RVs - 1080P DVR Recording

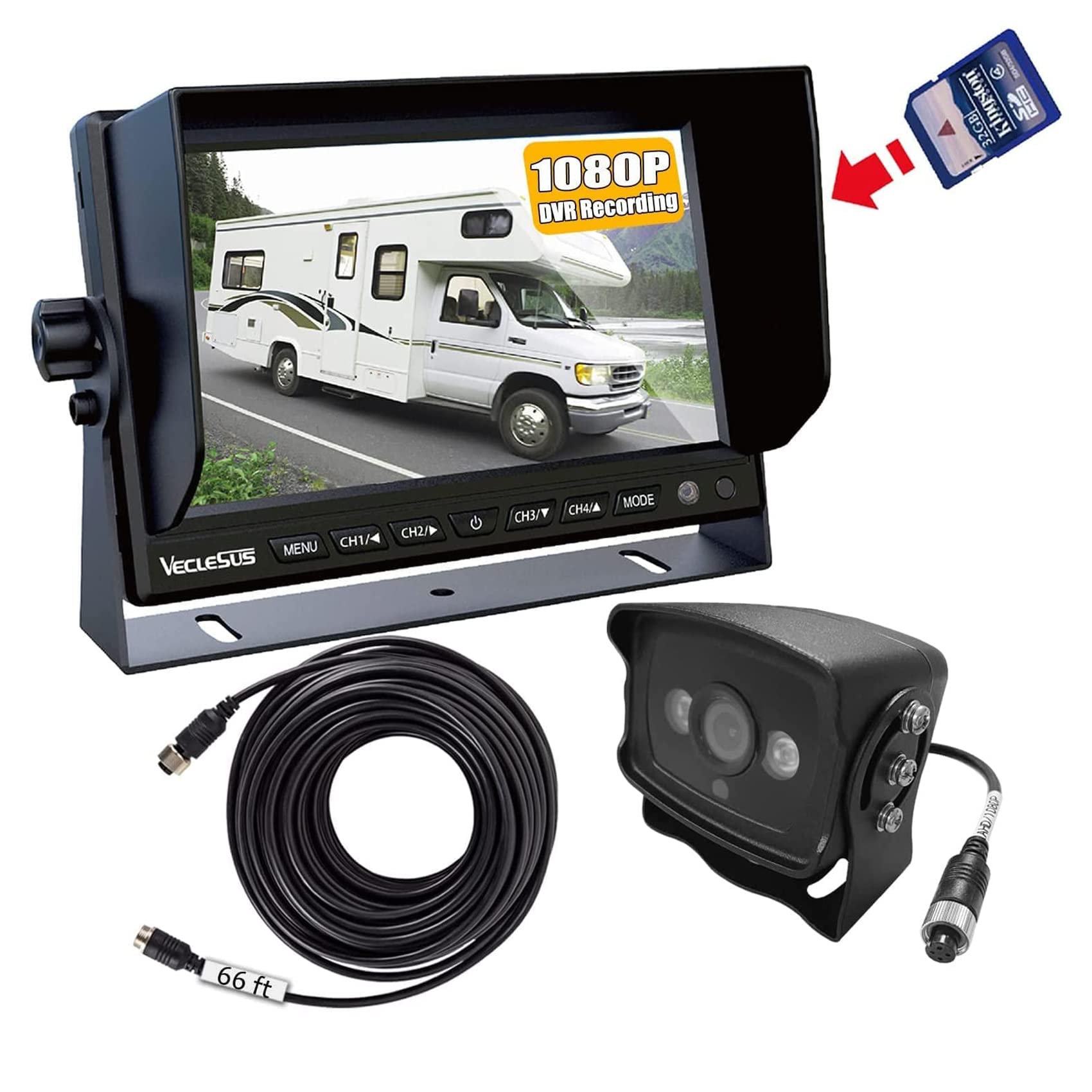

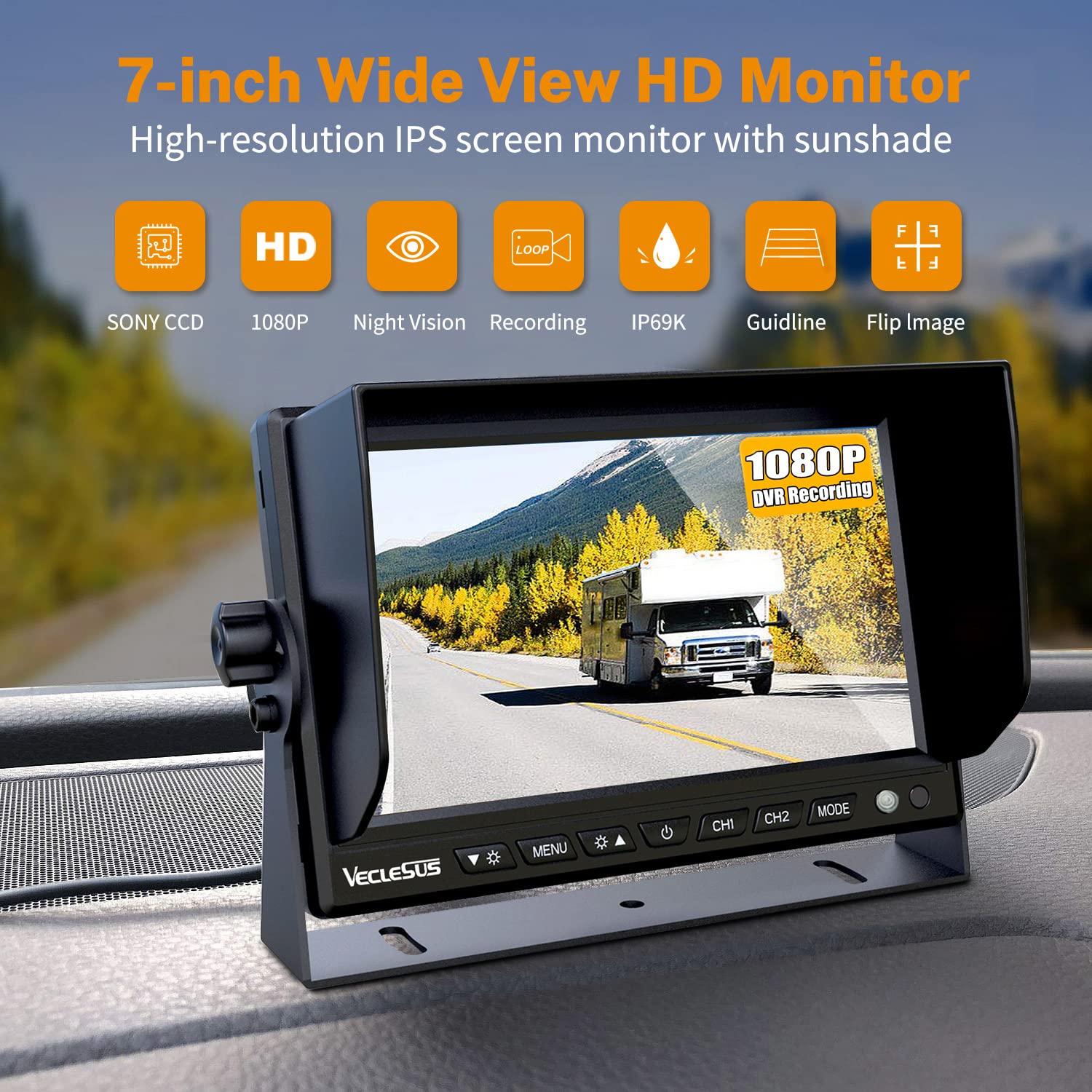

VECLESUS VMQD 1080P HD DVR Recording Wired Backup Camera with 7” IPS Car Monitor Widely Applicable VECLESUS VMQD 1080P HD DVR Recording Wired Backup Camera with 7” IPS Car Monitors are suitable for all Cars, Sedans, Roadsters, SUVs, Vans, Pickups, Tractors, Small Trailers, etc., and also for new or old most large vehicles. Package Contents 7 Inch Monitor HD Backup Camera User Manual 20M (66ft) Extension Cable Monitor Fan-shaped Mount Car Charger Installations Accessories Remote Control Product Information: DVR Recording Function, Maximum Support 256G SD Card Panel Size: 7" HD IPS Digital Panel Camera Pixes: 1920*RGB*1080 Brightness: 300cd/㎡ Screen Mode: 16:9 Video System: NTSC / PAL Auto Removable Wide Sunshade Video Input: CH1, CH2, CH3, CH4 Button Diagram Details Installation Mount the Monitor： 1. Find the best installation position to install monitor in your vehicle. Remove the screw around then take out the monitor. Put U type bracket to the right place and adjust angle, prepare 3 screws. 2. Locking the bracket by screws. Put the monitor into bracket adjust angle and locking it. 3. Finish installation. The adjustable angel is forward 30 degree and backward 30 degree. User can adjust a suitable angle by themself. Cable Connections： 1. ACC red wire: 12V-36V power supply (Connect to the key ignition circuit) 2. BAT yellow line: 12V-36V power supply (Connect to the positive pole). 3. GND black wire: negative pole (connect to the negative pole). 4. Forward wire (CH1) brown wire:trigger CH 1 single image to full screen. 5. Reversing wire(CH2) green wire:trigger CH2 single image to full screen. 6. Turning lamp wire(CH3) blue wire:trigger CH3 single image to full screen 7. Turning lamp wire (CH4) gray wire:trigger CH4 single image to full screen. Tips: BAT yellow wire and ACC red wire cannot be screwed together to connect to the ACC line to take power. After power off and power on again, the recording time will not be saved. Other functions are normal. Please take power according to the usage requirements! Camera: As the camera need to be fixed on the vehicle, it may need to drill a hole on your vehicle, before drilling please measure the size of boreholes and check that no cable or wiring is on the other side of the wall. Multi Functions to Ensure Your Driving Safety 2 Optional Monitor Bracket The monitor is supplied with 2 different mounts to mount: U-shaped bracket and Fan-shaped bracket. You can change the angle of monitor easily. Loop Recording Function The earliest video segment will be automatically overwritten when the memory space is full. Maximum support 256G SD Card (NOTE: The SD Card is not included in the package, please buy it additionally, recommended SD card Asin: B08GY4K5DS) Superior IR Night Vision Built-in high sensitive infrared night vision chip, automatically turn on infrared night vision at night. Note: The camera lights are infrared LED it won't be light up at the night. Application Scenarios IP69K Waterproof High quality waterproof treatments connector. Works perfectly in rainy day. Image Flip Mode Not only can be used as a backup camera but also can be installed in the front of your vehicle. It can be expanded to maximum of 4-way driving assistance systems, and the screen can be triggered through the corresponding trigger lines. Additional camera Asin: B09G5TCDBZ, if you need it, pls consult us. Multi-function Split Screen There are 12 types of split screen, you can view multi-cameras images at the same time.Alternatively, you also can see one camera for full screen separately. VM1 1080P Wired Car Backup Camera Kit Rectangle Baby Car Mirror Monitor WM1 1080P HD Wireless Backup Camera VMS 1080P HD Vehicle Backup Camera VC1 Backup Camera Rectangle VT1B Baby Camrer Monitor Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews 4.2 out of 5 stars 385 3.5 out of 5 stars 32 4.2 out of 5 stars 173 4.5 out of 5 stars 190 4.2 out of 5 stars 544 3.3 out of 5 stars 37 Price $59.99$59.99 $29.99$29.99 $49.99$49.99 $159.99$159.99 $25.99$25.99 — no data Wireless or Wired Wired Wired Wired Wired Wired Wired Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision Monitor Mount Position Dashboard or windshield Dashboard or windshield Dashboard or windshield Dashboard or windshield / Dashboard or windshield Monitor Size 4.3〞 LCD 4.3〞 LCD 4.3〞 LCD 7〞 LCD / 4.3〞 LCD Adjustable Parking Lines ✓ ✓ ✓ ✓ ✓ ✓ Mirror/Normal Image Option ✓ ✓ ✓ ✓ / ✓ Waterproof Rating IP 68 IP 68 IP 68 IP 68 IP 68 IP 68 The length of Extension Cable 33FT 16.4FT 33FT 66FT 33FT 16.4FT Supports Several Video Inputs 1 1 1 2 1 1

【Veclesus backup camera system】 1.Our VMQD backup camera with monitor is a wired backup camera system with a storage function, which can be used as a dash camera.The rearview camera system can support up to four camera video signal inputs, monitor supports a Quad split screen. 2. We also come with a 66-foot (20-meter) extension cable in the package, and you can adjust the length of the connection cable according to your needs.

2. We also come with a 66-foot (20-meter) extension cable in the package, and you can adjust the length of the connection cable according to your needs. 3.Veclesus backup camera system is very suitable for installation in Motorhome, Recreational Vehicle, Trailer, Truck, Camper, Modified cars, Modified cars and other medium and large vehicles.

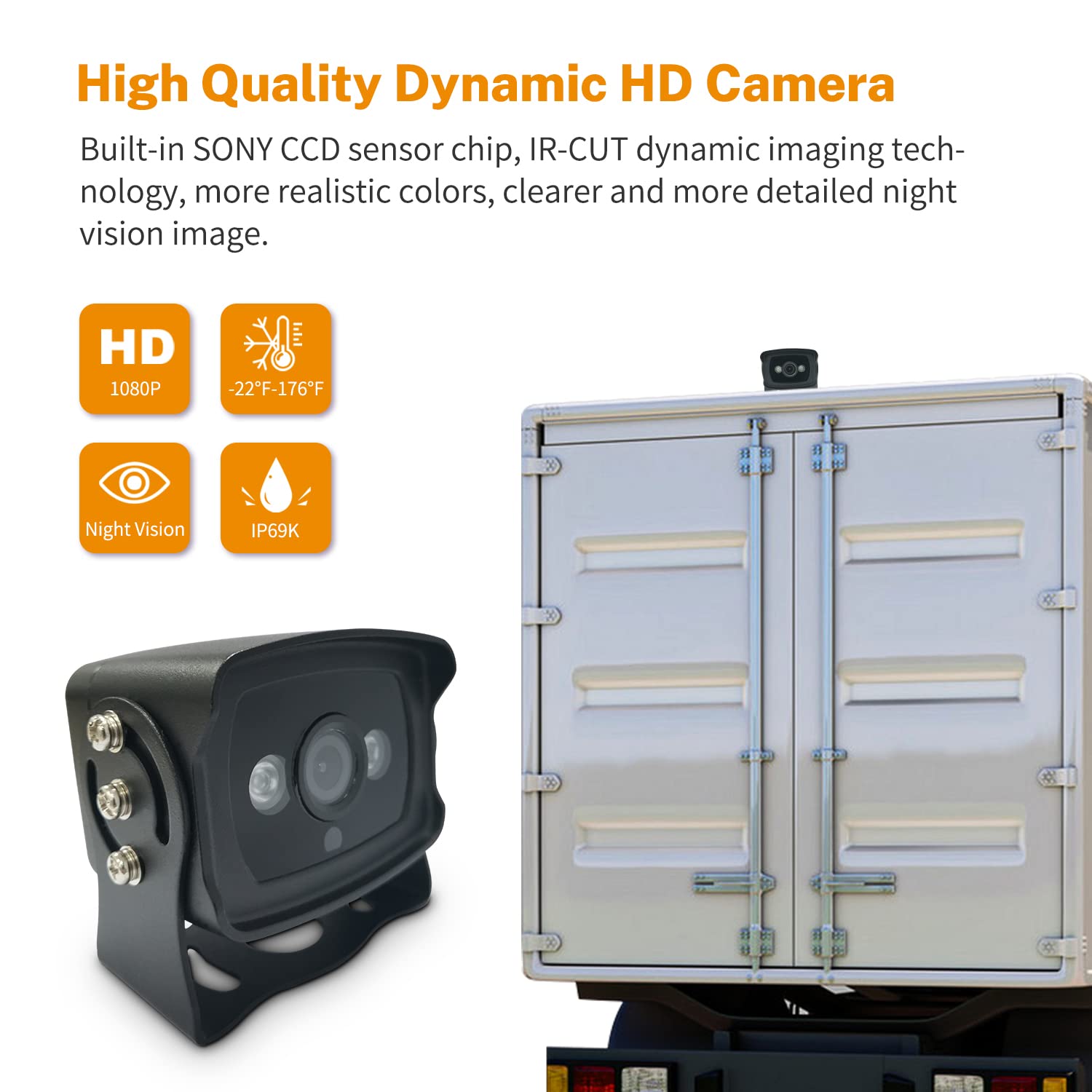

【IP69 Waterproof and High-Temperature Resistant Design】1.The VECLESUS reversing camera housing is made of aviation-grade aluminum alloy material, which has undergone high-temperature anodizing surface treatment and is pressed with the latest sealing technology. It has high strength, anti-aging, high-temperature resistance, and other practical features.

2.With the IP69 waterproof function, there is no need to worry about water or fog entering the lens. The rearview camera system can also withstand extreme temperatures from -22°F to 176°F, ensuring normal operation in hot and cold conditions, making driving more convenient and safer.

【Intelligent high-definition night vision function】The backup camera uses a night vision function that combines an IR-CUT dual filter lens and a Charge-coupled Device integrated circuit.Color cast problems can be corrected during the day, The brightness of the backup camera can be increased at night,Fill-in night vision effect,Increase light sensitivity.thereby,Improved image clarity and Image delicacy.

【Easy installation】Our backup camera system comes with a car charger, the backup camera connects directly via a 4-pin cable with a power cord connector. When the vehicle is in reverse gear, it is powered by the reversing light, and the display can be directly connected to the 9-24V fuse box or cigarette lighter for continuous use.

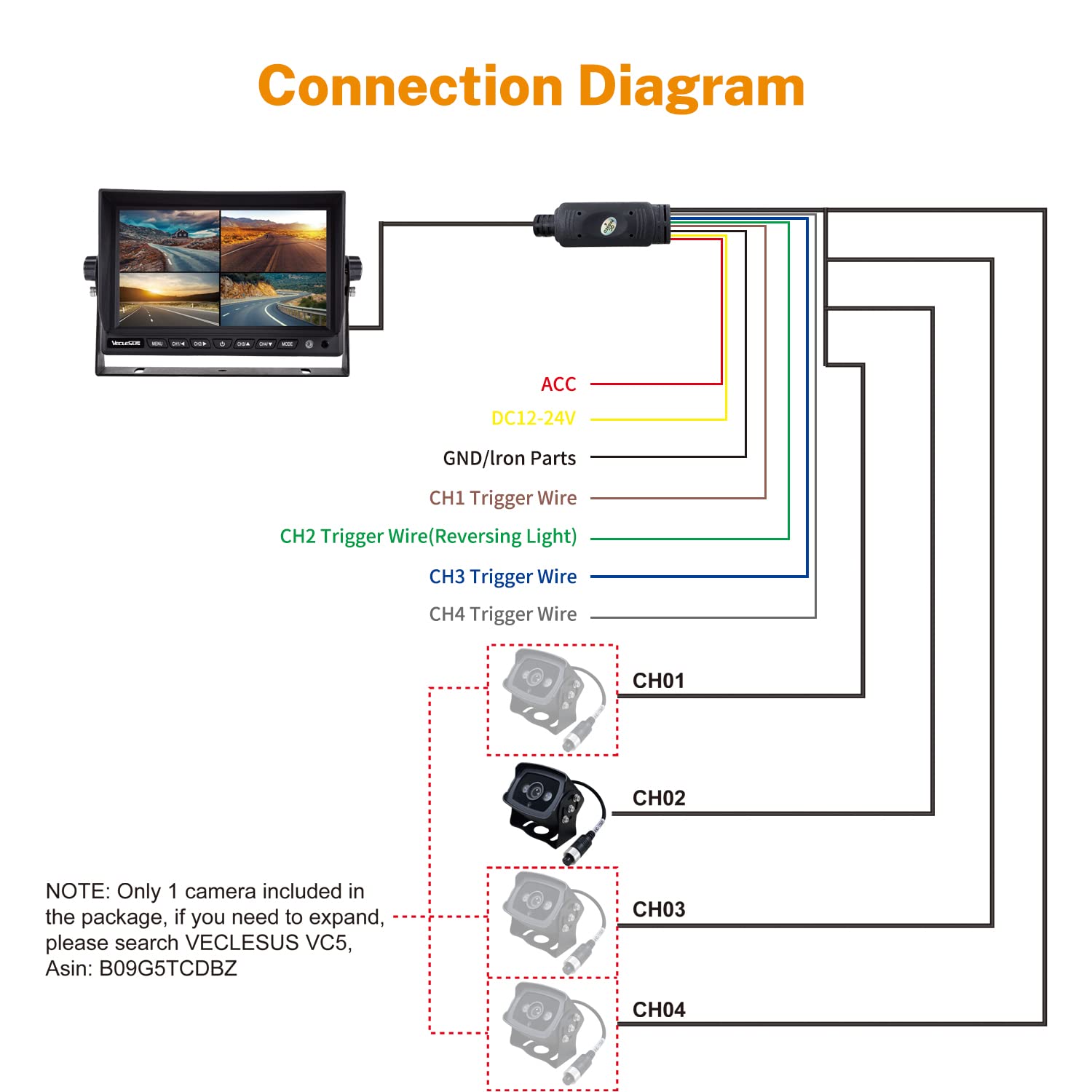

【Wide Practicality】In addition, our backup camera also comes with a 66-foot (20-meter) extension cable, which is connected to the monitor through a 66-foot (20-meter) extension cable and is powered by the fuse box, with the red connection ACC (9-36V), The black wire is connected to the metal (ground), and the other colored wires are connected to the trigger power supply;

Different channels can be set through buttons on the display or triggered by trigger power, simple connection, convenient and practical. (Note Connection diagram and installation instructions are included in the box)

Our VECLESUS backup camera products come with a 365-day warranty and 24-hour technical support and replacement service. Feel free to contact us through Amazon at any time and we will solve your problem together.
